THE INSTALLED GIMBAL, CAMERA, AND LENS ARE SOLD SEPARATELY

Powerful and Fast Performance

The lightweight frame and quad 17" propellers of the Airpeak S1 help it achieve up to 30 minutes of flight time without payload (less with payload). Add in high-powered brushless motors, and the Airpeak S1 can move with exceptional speed. This optimized propulsion system can accelerate through shots and reach waypoints at up to 55.9 mph (without payload) and a 0 to 50 mph acceleration of just 3.5 seconds.

Airpeak Base

Airpeak Base is a web-based app for overall drone project management, primarily providing automated flight planning and flight log storage. Airpeak Base can be implemented with just one Airpeak S1 or a fleet of them. Some management features include reviewing equipment status and usage logs, downloading flight logs from the drone, and setting up error warnings and maintenance reminders.

Separate accounts can be created to increase information security and accountability in aircraft usage. Being a web-based app, all data is conveniently stored in the cloud, so team members can access them from any location. It also helps Sony's Airpeak S1 customer support team to more efficiently provide problem resolution.

Mission Flight mode utilizes the Projects section of Airpeak Base to let you create automated flight plans that can be created for execution by the pilot with the Airpeak Flight mobile app. You can set the drone's speed and position (latitude, longitude, and altitude) along a timeline, along with the gimbal direction and timing of image and video capture. This mode can be saved and run repeatedly, just like a camera on rails when you're on the ground.

Repeat Flight mode accurately recreates old flight paths from flight logs, including gimbal and camera movement. In both Mission Flight and Repeat Flight modes, pilots maintain manual control to tweak the route and settings in the moment.

Airpeak Flight

Airpeak Flight is a mobile app that runs on your optional Apple iPhone or iPad (iOS/iPadOS 14 or higher), giving you aircraft, remote, camera, and gimbal control. While in flight, you can check flight distance, battery usage, and other telemetry. Airpeak Flight can also be used to confirm and execute automated flight plans created by Airpeak Base in Mission Flight mode. During automated flights in Mission Flight mode, pilots retain control of the gimbal and camera, can check aircraft status, monitor equipment, and view a live feed from the nose-mounted FPV camera.

Vision Sensing System

The flight control system and ESC (Electronic Speed Control) integrates the propulsion and various sensing metrics, such as IMU (Inertial Measurement Unit), direction, barometric pressure, and infrared ranging. In addition to the five stereo cameras (front, back, left, right, and bottom) and two IR range sensors, the S1 can accurately determine its spatial position and orientation in real time.

This ability allows for reduced camera shake during low-level flying, and it is essential for automatic obstacle avoidance in dense areas or when GNSS reception is not available. If an obstacle is detected, the S1 can enable the obstacle braking function, which auto-decelerates or stops the aircraft if needed. Obstacle braking can also be manually triggered if needed.

Flight Modes

Standard Mode: Ensures all sensors and obstacle detection are on
Velocity Mode: Reduces effects of wind on hovering, turning, and maneuvering
On Course Function: Pilots can accomplish accurate recreations of circular flight paths
All Modes: You can customize maximum speed, angles, acceleration rates, and other parameters
Automatic Return to Home
When the battery is low or the remote controller signal is lost, the Return to Home (RTH) feature automatically brings the drone back to its starting point. If obstacles are in the way of a straight flight, the aircraft will intelligently calculate an alternate route. Pilots can also conveniently trigger RTH at the end of a shoot to free them from piloting the aircraft home.

Self-Diagnostics

The Airpeak S1 automatically runs a full system check before starting its motor, alerting you to any possible issues and restricting takeoff and landing if these issues are too severe. Self-diagnostics can also be done while in flight, letting pilots know of any issue so they can make an emergency landing if necessary.

Remote Controller

The included remote controller provides real-time control over the Airpeak S1 and the optional gimbal. Piloting is done via the twin Futaba-designed control sticks and various aircraft, gimbal, and camera buttons, which can be changed if needed. In addition to that, four customizable buttons can be set to actions that reflect your specific piloting needs. A mobile device holder on the remote can open up to 7" to accommodate either an Apple iPhone or iPad. To allow for external drone footage monitoring by a product team, use the built-in HDMI port to output video to an optional monitor.

World‘s smallest drone that can carry a full frame Alpha series mirrorless camera
Max speed of 55.9mph (25m/s), maximum angular velocity of 180°/s2 and attitude angle up to 55°
Sony developed propulsion device and flight control system
Flight time up to 30 minutes without a payload.
Stable in winds up to 44.7 mph (20m/s)
Retractable landing gear for unobstructed camera field of view
Detachable propellers for fast easy replacement and transport
Sony developed stereo cameras and vision sensing processor with original algorithm for real time 3D spatial awareness
Achieves stable flight in enclosed spaces or when out of range of Global Navigation Satellite System (GNSS)
Equipped with obstacle braking function by multi-directional sensing
RCR-VH1 remote controller operates the aircraft, gimbal, and camera while providing real-time image output.
Use with "Airpeak Flight" mobile app to control, monitor and manage the aircraft, remote controller, camera, and gimbal in-flight.
Dual Operation Mode for independent control of Aircraft and Gimbal/Camera.
Equipped with flexible flight modes to make flying and creating even easier
"Airpeak Base" web app for integrated management of flight plans, flight logs, and equipment

FAQ

Maximum Takeoff Weight 15.38 lb / 6.98 kg
Payload Capacity 5.5 lb / 2.5 kg
Maximum Horizontal Speed 55.9 mph / 25.0 m/s
Maximum Ascent Speed 15.7 mph / 7 m/s
Maximum Descent Speed 8.9 mph / 4 m/s
Maximum Wind Resistance 44.7 mph / 20.0 m/s
Flight Ceiling 8202' / 2.5 km
Maximum Flight Time 22 Minutes
Maximum Tilt Angle 55°
Hovering Accuracy ±0.3' / 9.1 cm Vertical with GPS, Vision Positioning
±0.3' / 9.1 cm Horizontal with GPS, Vision Positioning
Maximum Angular Velocity 180°/s (Pitch)
180°/s (Yaw)
180°/s (Roll)

In The Box

Sony Airpeak S1 Professional Drone
RCRVH1 Remote Controller
4 x PPL1785 Propeller
2 x LBPHS1 Flight Battery
LBGH1 Battery Charger
Landing Gear
Calibration Board
Power Cable
Control Cable
2 x USB Type-C Cable
Micro-USB Cable
Limited 1-Year Warranty

Commercial Drones

DJI Matrice 30 Series

Flybotix ASIO Pro {Open Box}

DJI Matrice 350 RTK

Autel EVO Max 4T XE Bundle

Autel EVO Max 4N Bundle

SOTEN

Sony Airpeak S1 Professional Drone

DJI Phantom 4 RTK- Aircraft Only- [Pre-Owned]

Matrice 3TD Care Plus

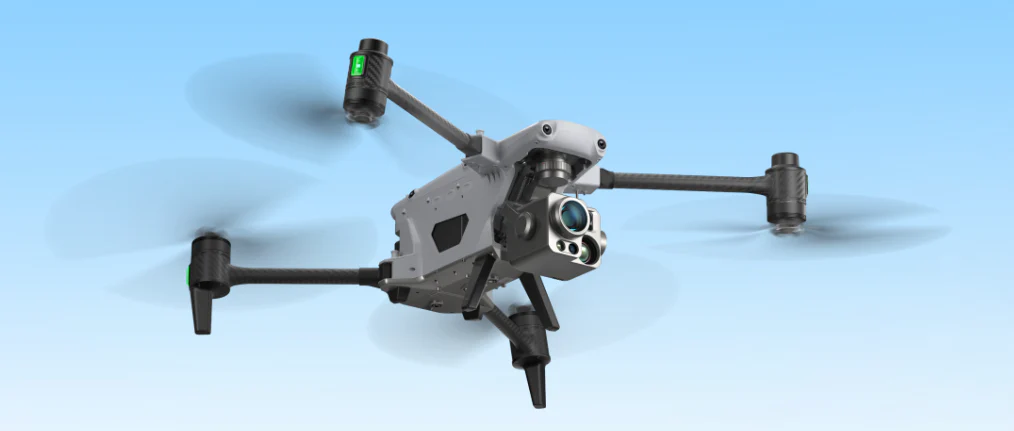

Autel Alpha L35T Bundle

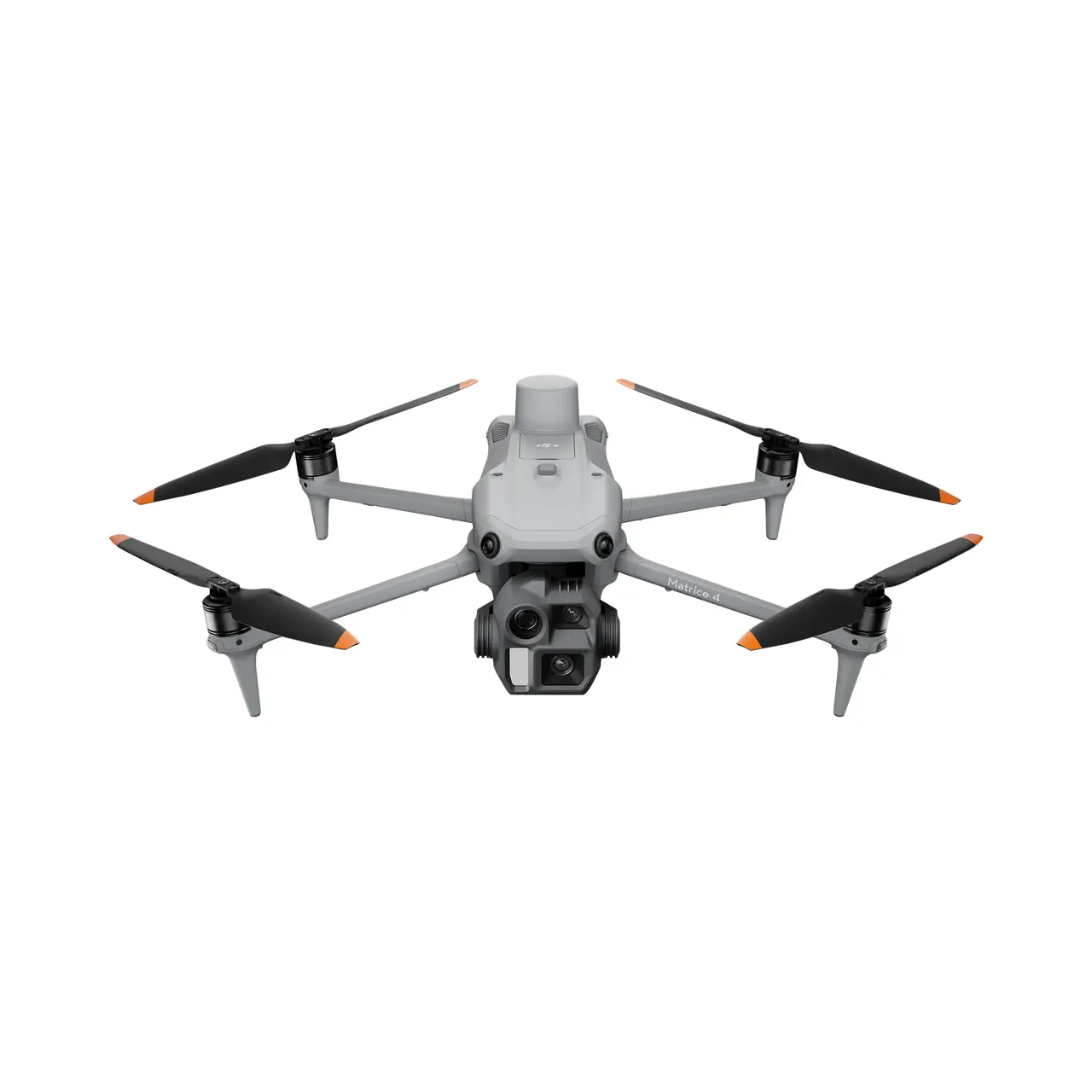

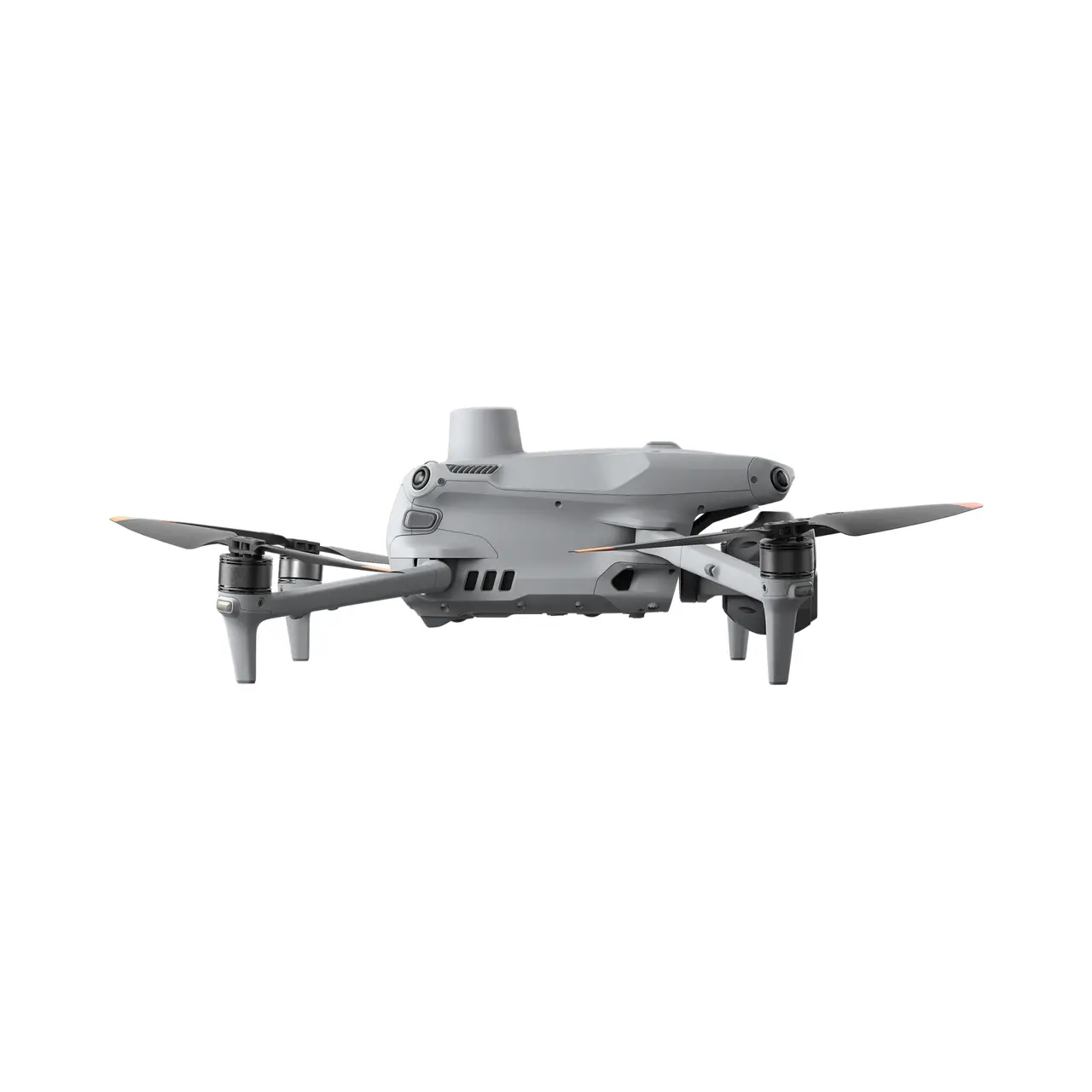

DJI Matrice 4 Series

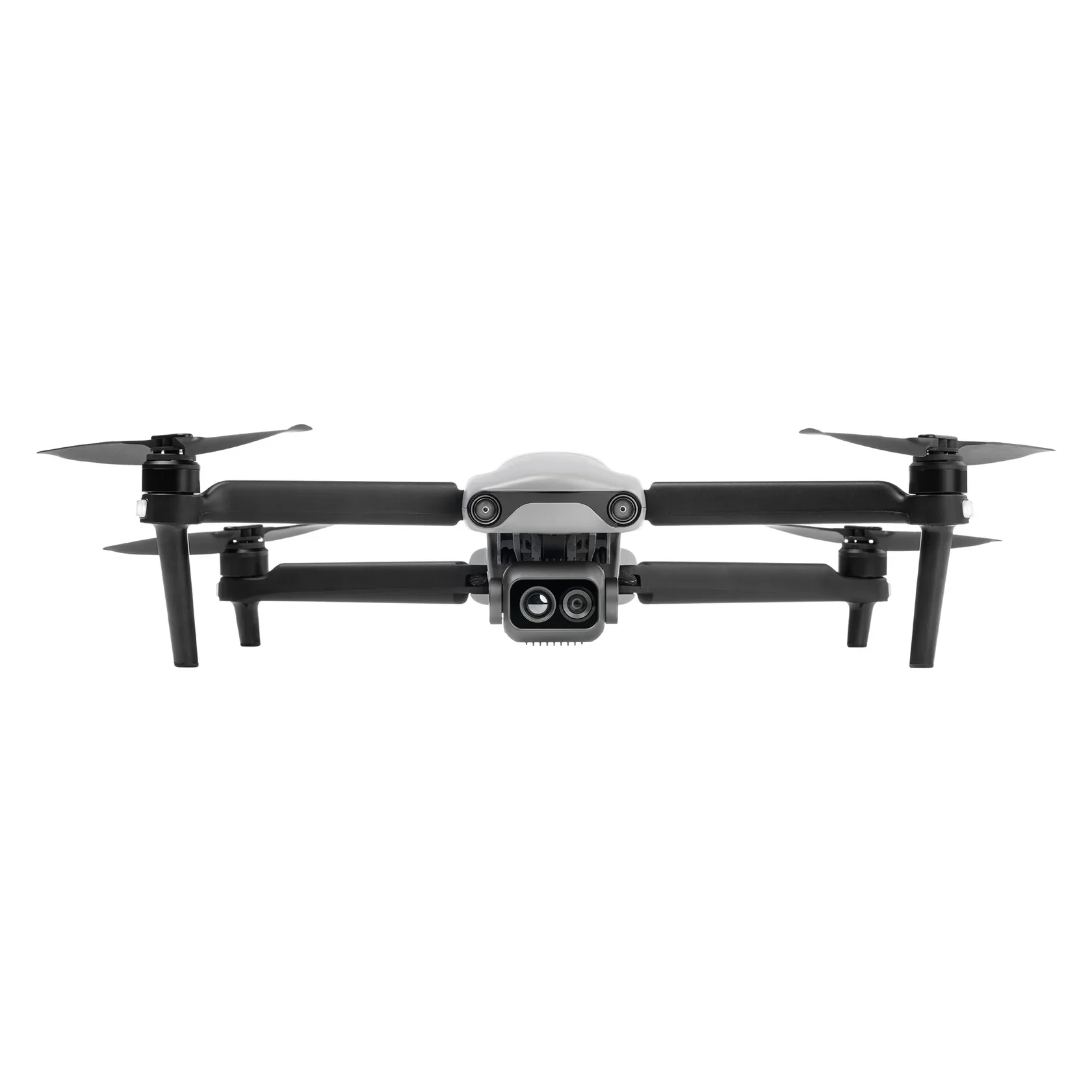

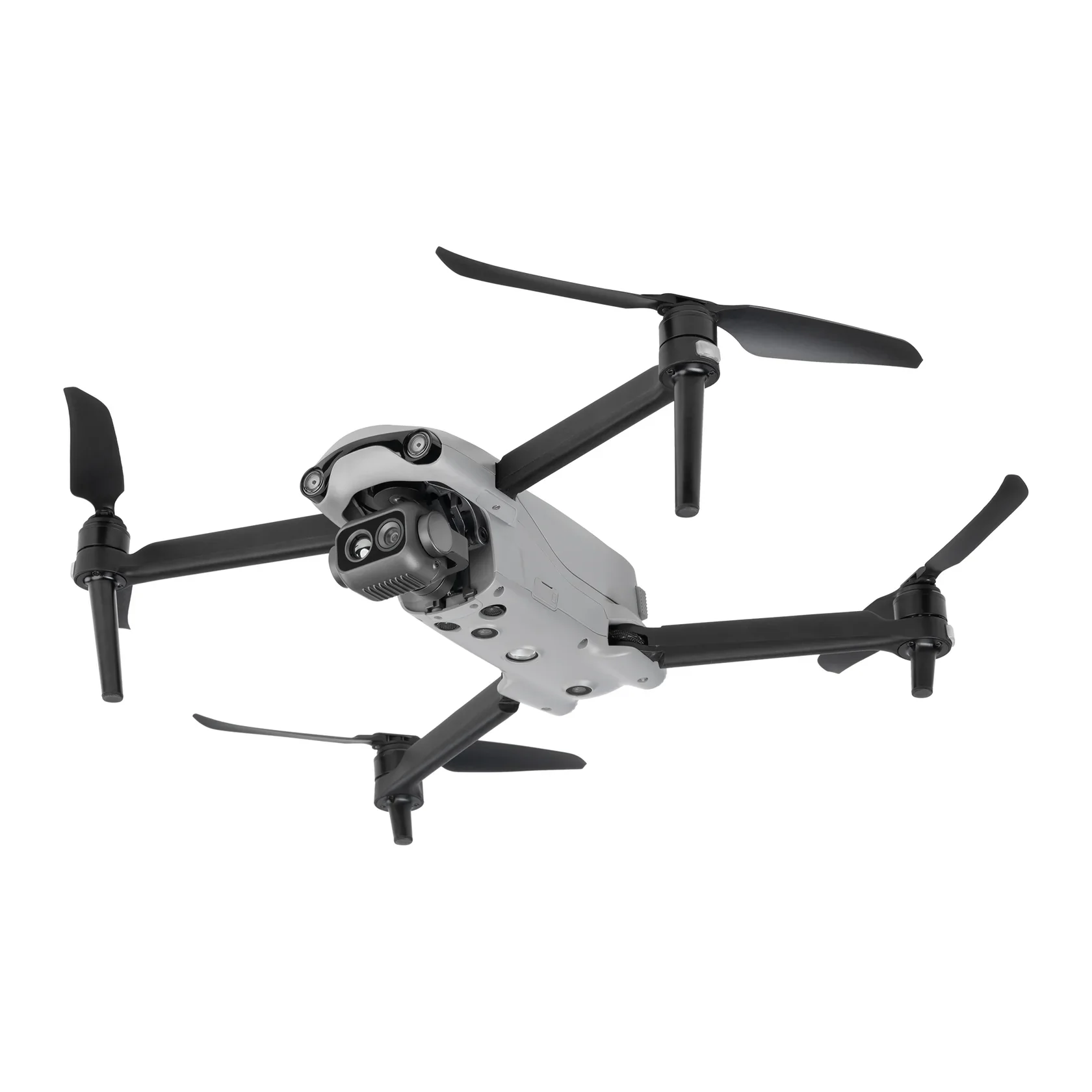

Autel EVO Lite 640T Enterprise
