EchoLogger ECT D24S Echo Sounder

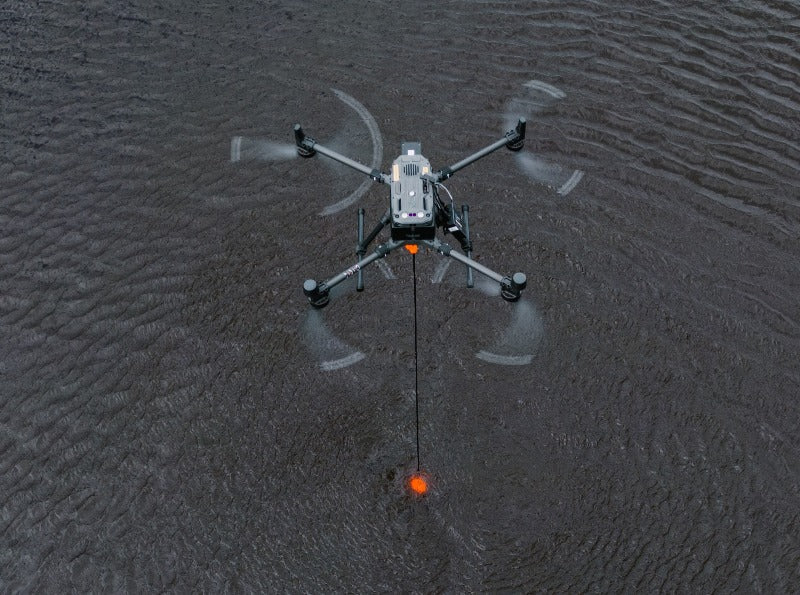

EchoLogger ECT D24S dual-frequency echo sounder with tilt and temperature sensor, harness, housing, and mountings for the drone.

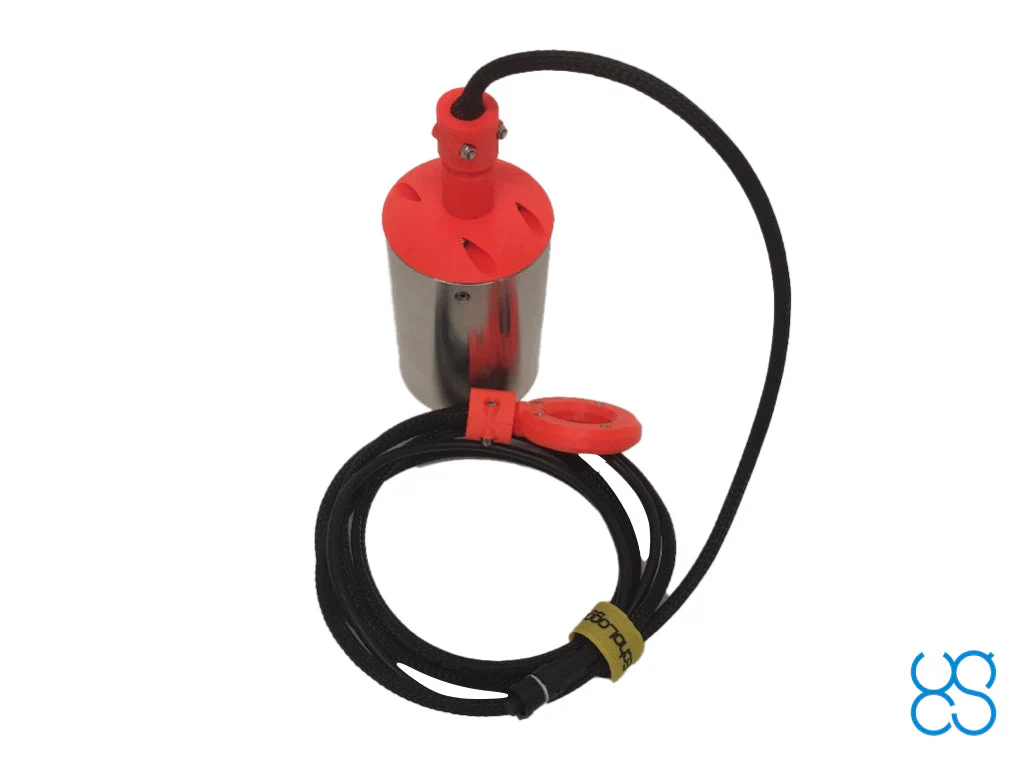

The echo sounder cable is protected by a plasticĀ sleeve which also supports the echo sounder and housing weight.
ECT D24S has optimal combination of frequencies for shallow ponds/lakes/rivers with a lot of seaweeds. For 200kHz itĀ will report continuous reflection from the bottom, 450kHz allows to "cover" shallow areas where low frequency will be useless because of dead zone.
HS Code:Ā 90158040 (hydrographic instruments)
Comes with an RS232 interface and connector forĀ SkyHub.
Cable length 2.5m.
| Sensor | ECT D24S |
| Type | Dual-frequency |
| Acoustic frequency, kHz | 200/450 |
| Measurement range |
0.5 ā¦ 200m (200 kHz) 0.15 ā¦ 100m (450 kHz) |
| Beam width Conical (-3dB) |
10Ā°/5Ā° (200/450 kHz) |
| Weight of the echo sounder (in the air), g | 280 |
| Weight of all components (in the air), kg (sensor,Ā SkyHub, altimeter, housing, cables, mountings) |
2.4 |
| Suitable DJI drones
(or Pixhawk drones of comparable size) |
M350 RTK M300 RTK M600 Pro |
Original: $8,999.00
-70%$8,999.00
$2,699.70Product Information
