GPR system: Radar Systems Zond Aero 1000 "NG"

Universal ground penetrating radar system for terrestrial and airborne surveys with real-time sampling (RTS) technology and advanced built-in digital signal processing to provide high quality data with an exceptional signal-to-noise ratio.

The Zond Aero 1000 NG is a truly versatile system that can be used in the most appropriate way for specific survey conditions:

• on a cart - the most standard method for scanning on the streets or in confined spaces
• dragged with a tow rope if the load-bearing capacity of the ground surface is not suitable for a wheeled cart

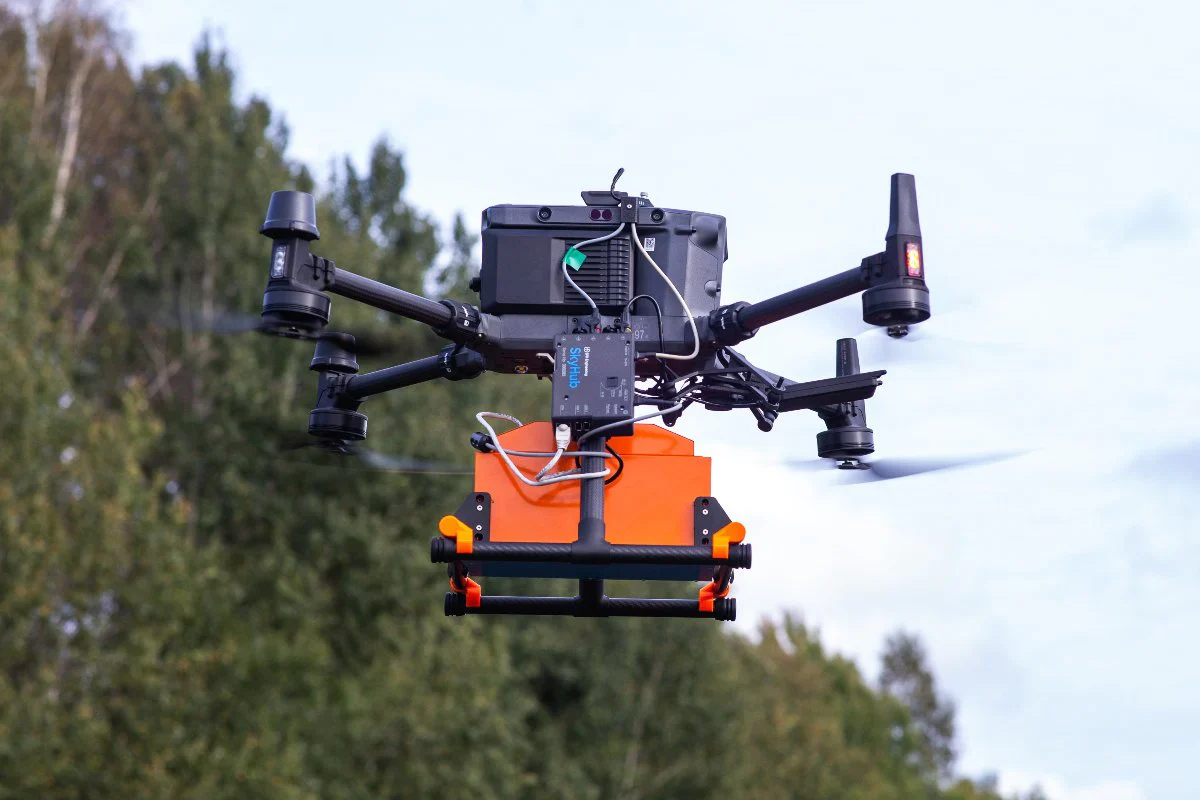

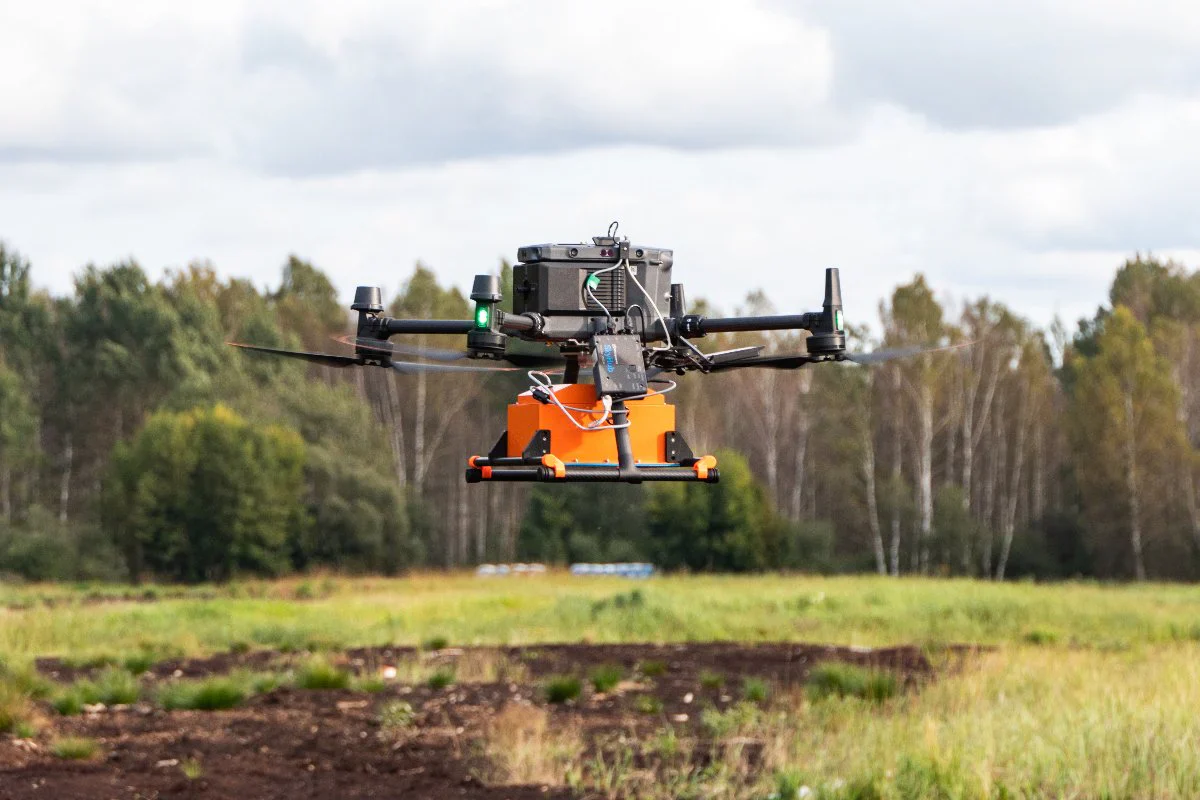

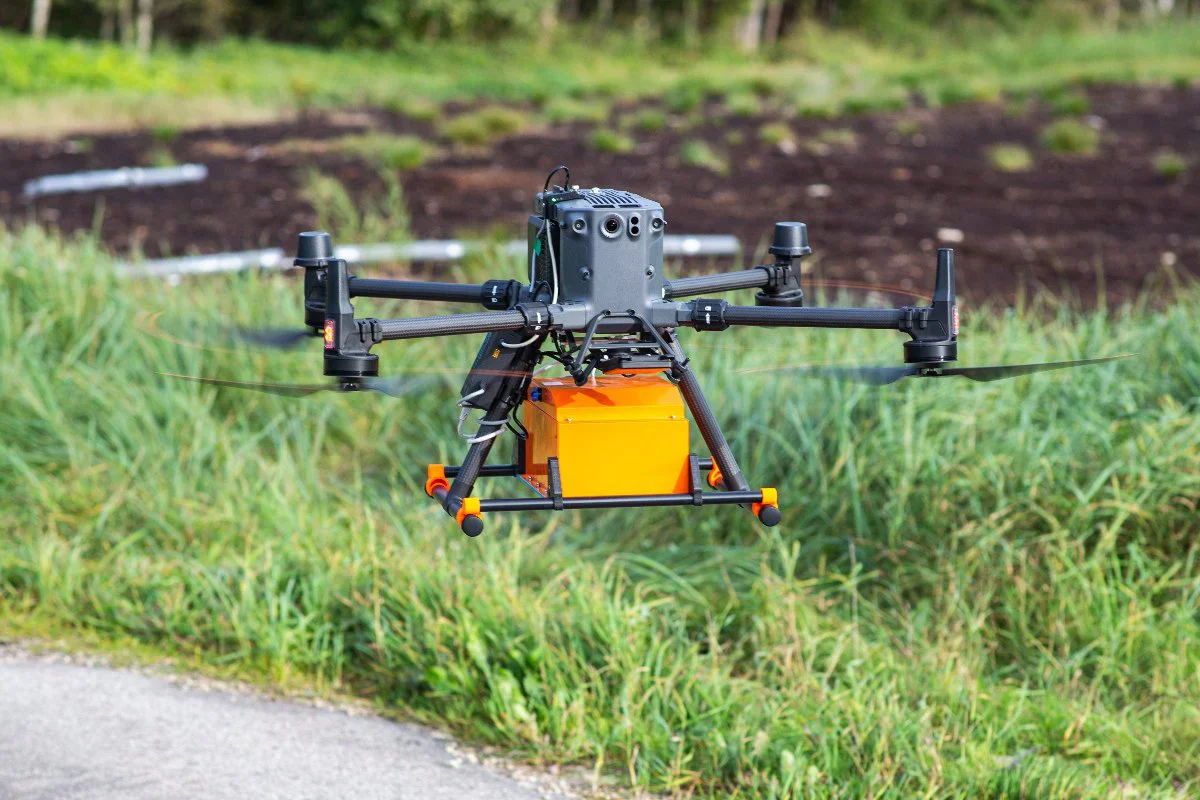

• on a drone for large open areas without tall obstacles and vegetation

Lightweight GPR system on the market, suitable for medium-sized drones like DJI M350/M300 RTK.

Recommended applications:

• profiling snow and ice to a depth of several meters
• detection of small objects at a depth of a few tens of centimeters below the surface

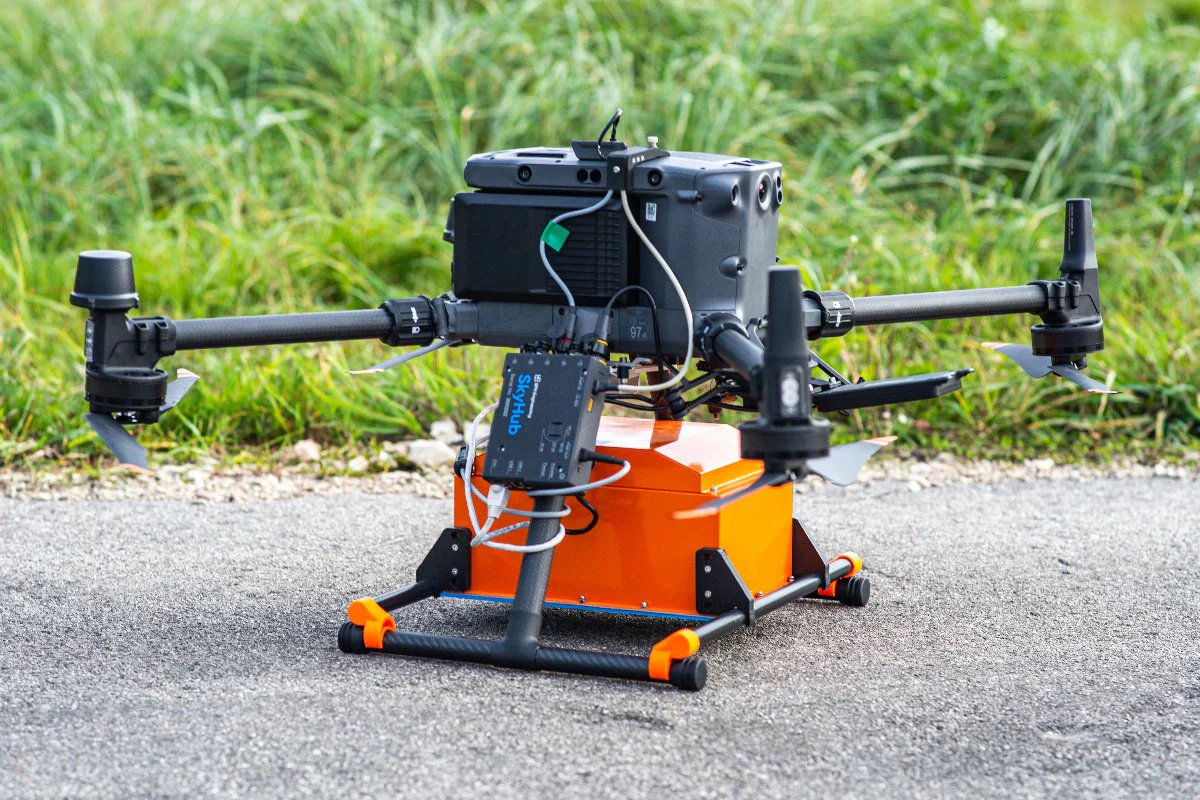

Includes a transportation box and mountings for the DJI M300/M350 RTK drone. Mounts for other types of drones are available upon request.

HS Code: 90158020 (meteorological, hydrological, geophysical instrument)

Please note that additional components and software must be ordered to use this GPR with drones. It is recommended to order a complete set. Please ask for the quote.



Type	Single-channel with shielded antenna
Center frequency	1000 MHz
Operating bandwidth	600-1300 MHz (-6 dB)
Sampling	Real Time Sampling (RTS) with high hardware stacking
Samples per scan	selectable 256 / 512 / 1024 / 2048 / 4096 / 8192
Samples rate	up to 1,280,000 (depends on hardware stacking)
Scan rate	up to 2,500 scans/s (depends on hardware stacking)
Sample output	32-bit digital raw data
Time range per sample	selectable 71 ps / 125 ps / 179 ps / 250 ps / 500 ps / 625 ps / 714 ps / 1 ns
Depth	Up to 2 meters depending on ground properties
Data format	Standard Geophysical SEGY Data Format (.sgy) with traces geotagging
DOCUMENTATION & DATA SETS
Data Sheet	Zond Aero 1000 NG GPR Data Sheet »»»
User Manual	SkyHub User Manual »»»
Data Samples	Airborne GPR Datasets »»»
ENVIRONMENTAL
Temperature	-20°C to 60°C internal temperature
Humidity	96% non-condensing
Ingress protection	IP68 in a protective box (used for transportation and for ground surveys) IP52 in airborne variant
MECHANICAL
Size (L x W x H)	31 x 19 x 15 cm - airborne configuration 52 x 43 x 21 cm - in protective case 71 x 45 x 28 cm – carton box for delivery
Weight	1.8 kg - airborne configuration without mounting kit for the drone 7.0 kg – in a protective case 10.0 kg – in a cardboard box for delivery
BATTERY
Airborne variant	Drone main battery is used to provide power to the GPR using standard power socket of the drone intended for payload
Ground surveys	The battery is integrated into a protective box, operating time up to 12 hours 99 W/h Li-Ion
WHAT’S IN THE KIT
Zond Aero 1000 NG GPR system with 1000 MHz center frequency antenna Prism 2 Data Acquisition/Processing software NANUK protective case (also used for ground surveys) 99 W/h Li-Ion battery integrated into the case (used for ground surveys only) Wi-Fi router integrated into the case (used for ground surveys only) Charger Tow rope for terrestrial surveys Mounting kit to fix GPR system on the DJI M300/M350 RTK drone
