L1 LiDAR

L1 PM LiDAR (Precision Measurement)

Scanning distance: 20m(@90% reflectivity); 10m(@10% reflectivity)
Measurement accuracy: ±2.0cm
Nearbyblind area: 0.05m
Sampling frequency: 43200points/s
Effective frequency: 21600points/s
Circumferential scanning frequency: 11Hz
Vertical scanning frequency: 180Hz
Communication interface: TTL UART
IMU: 3-axis acceleration +3-axis gyroscope
Human eye safety level: Class 1(IEC60825 -1:2014) Human eye safety
4D data: 3D position +1D grayscale
Anti-glare capability: >100KIux

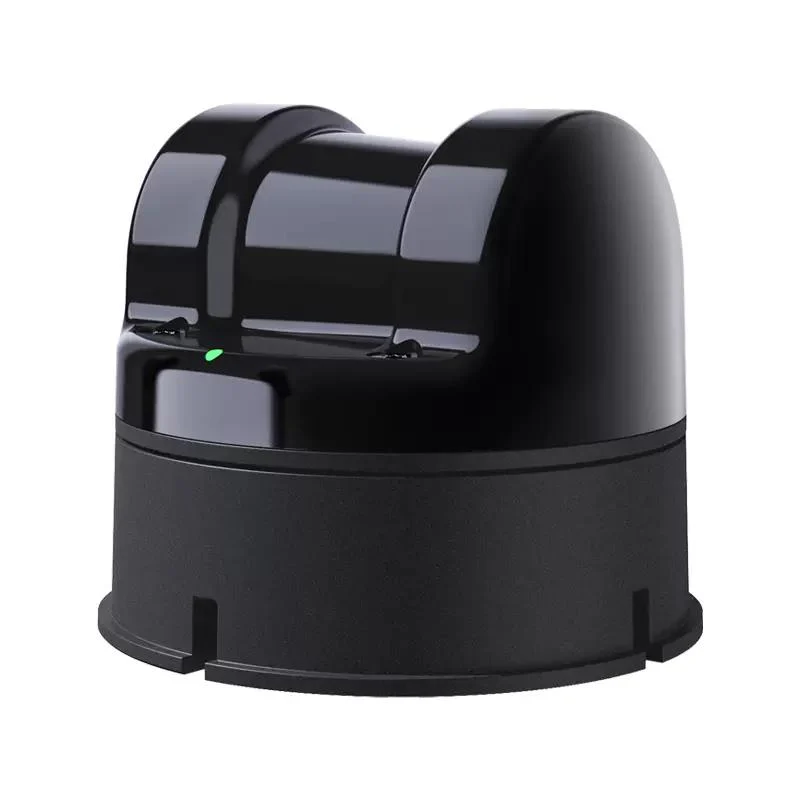

L1 RM LiDAR (Remote Measurement)

Scanning distance: 30m(@90% reflectivity); 15m(@10% reflectivity)
Measurement accuracy: ±2.0cm
Nearbyblind area: 0.05m
Sampling frequency: 43200points/s
Effective frequency: 21600points/s
Circumferential scanning frequency: 11Hz
Vertical scanning frequency: 180Hz
Communication interface: TTL UART
IMU: 3-axis acceleration +3-axis gyroscope
Human eye safety level: Class 1(IEC60825 -1:2014) Human eye safety
4D data: 3D position +1D grayscale
Anti-glare capability: >100KIux
