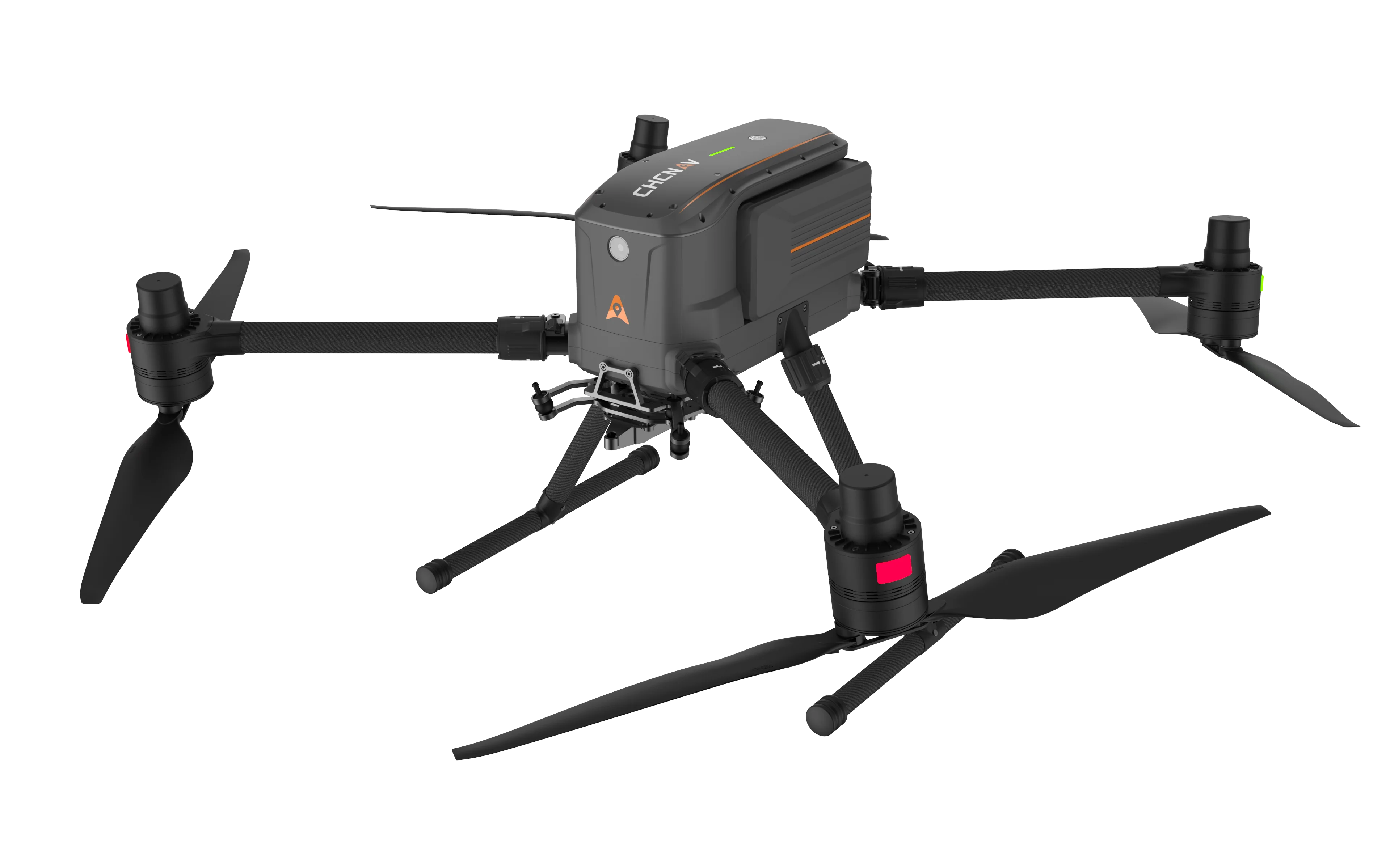

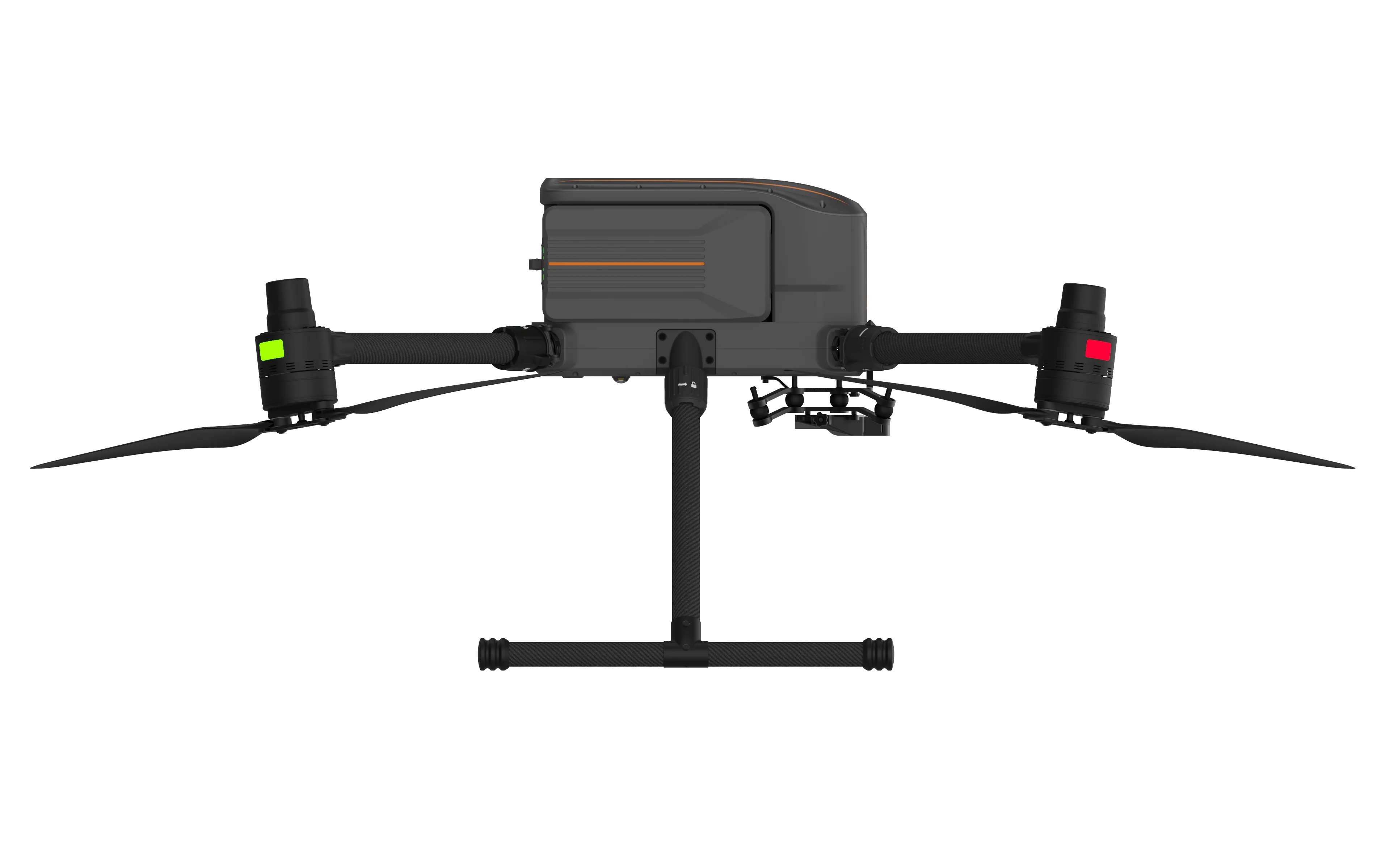

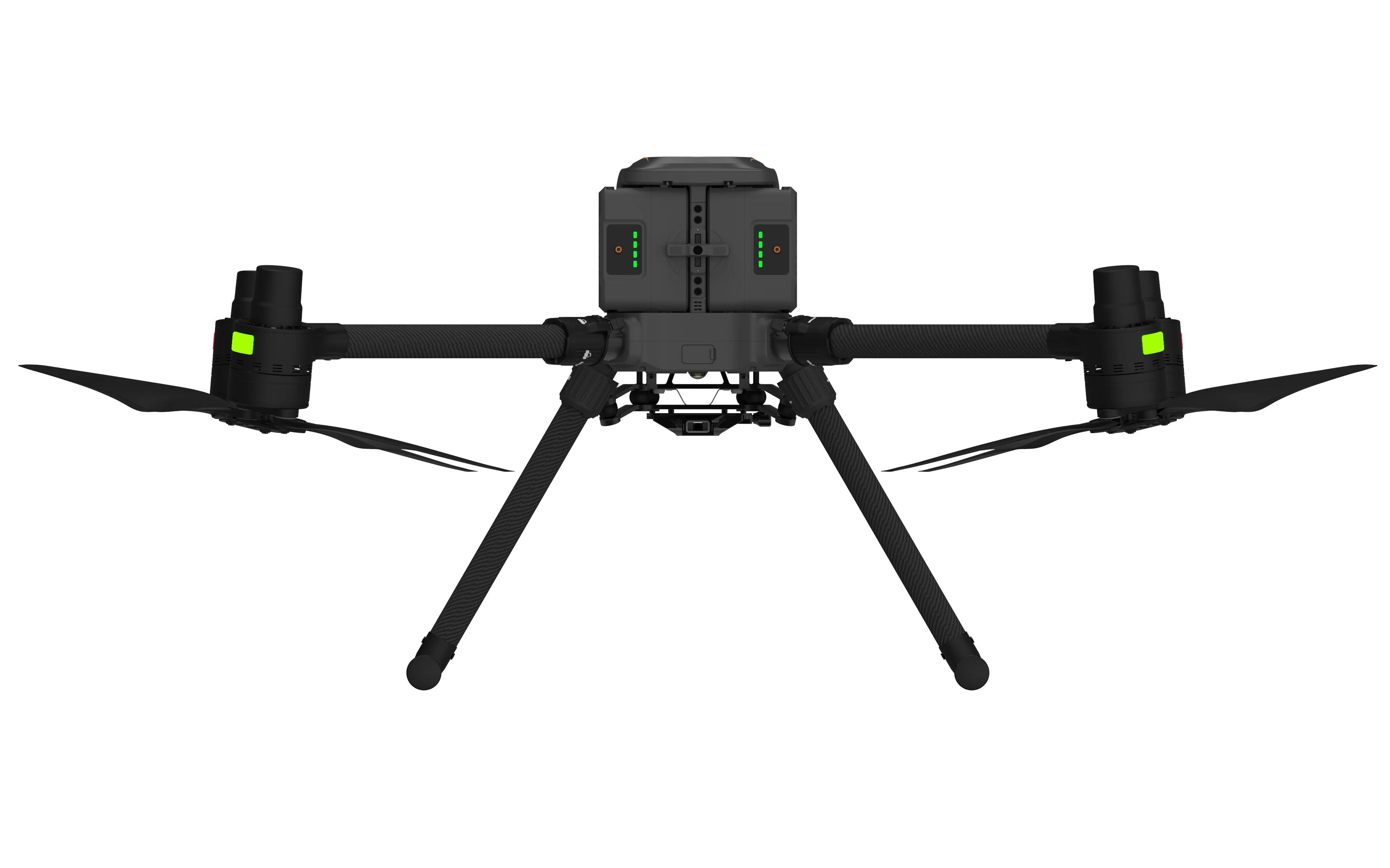

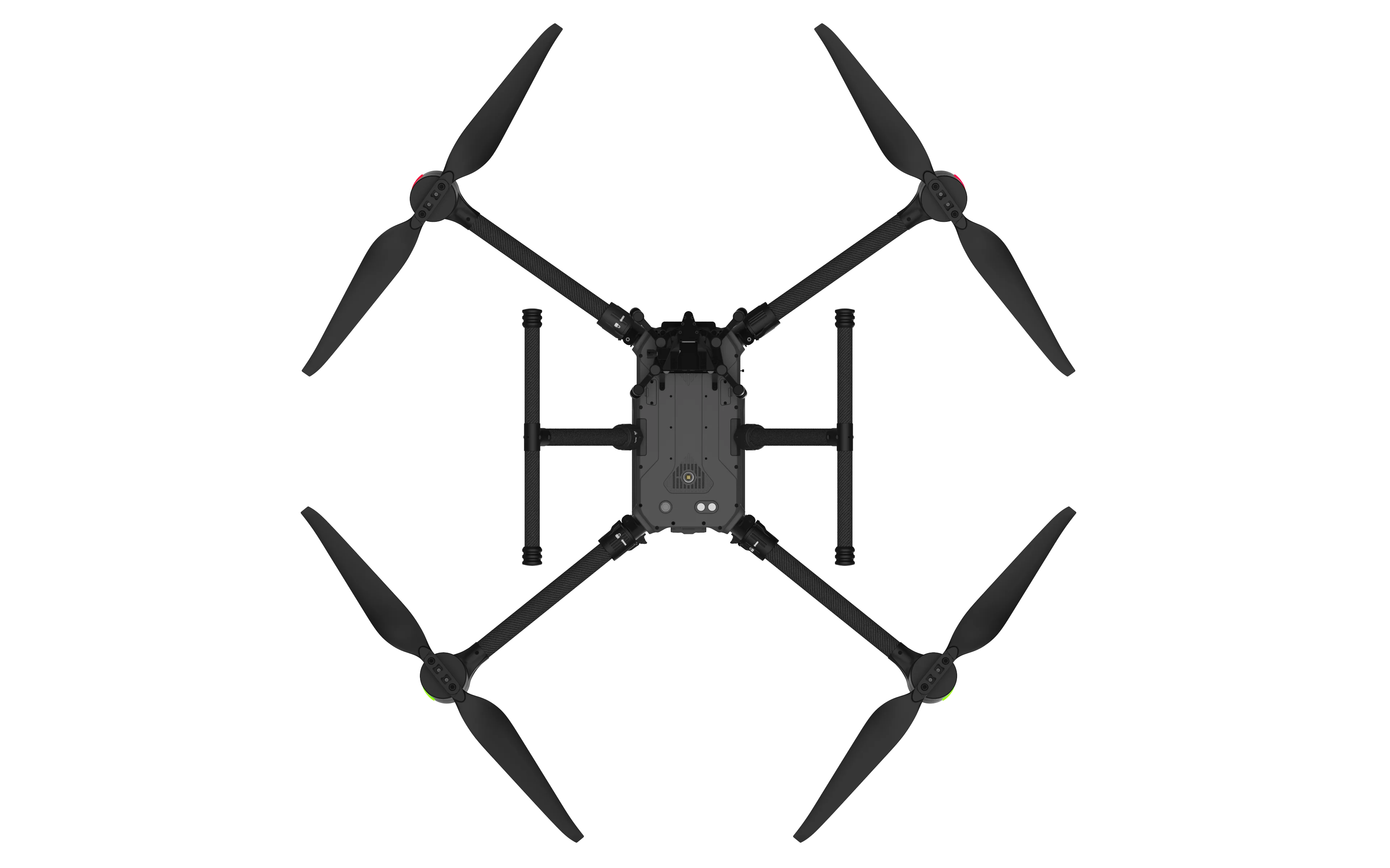

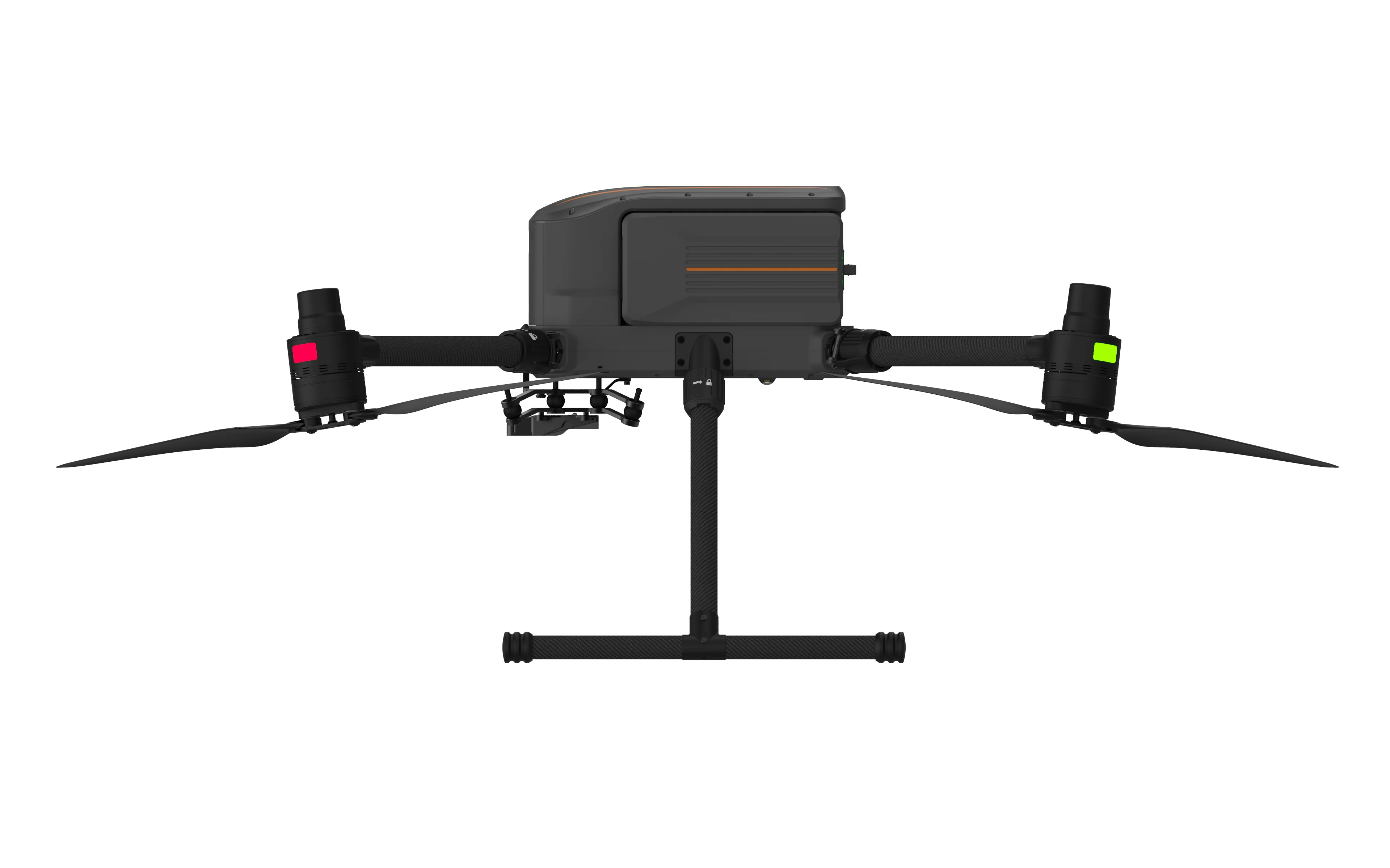

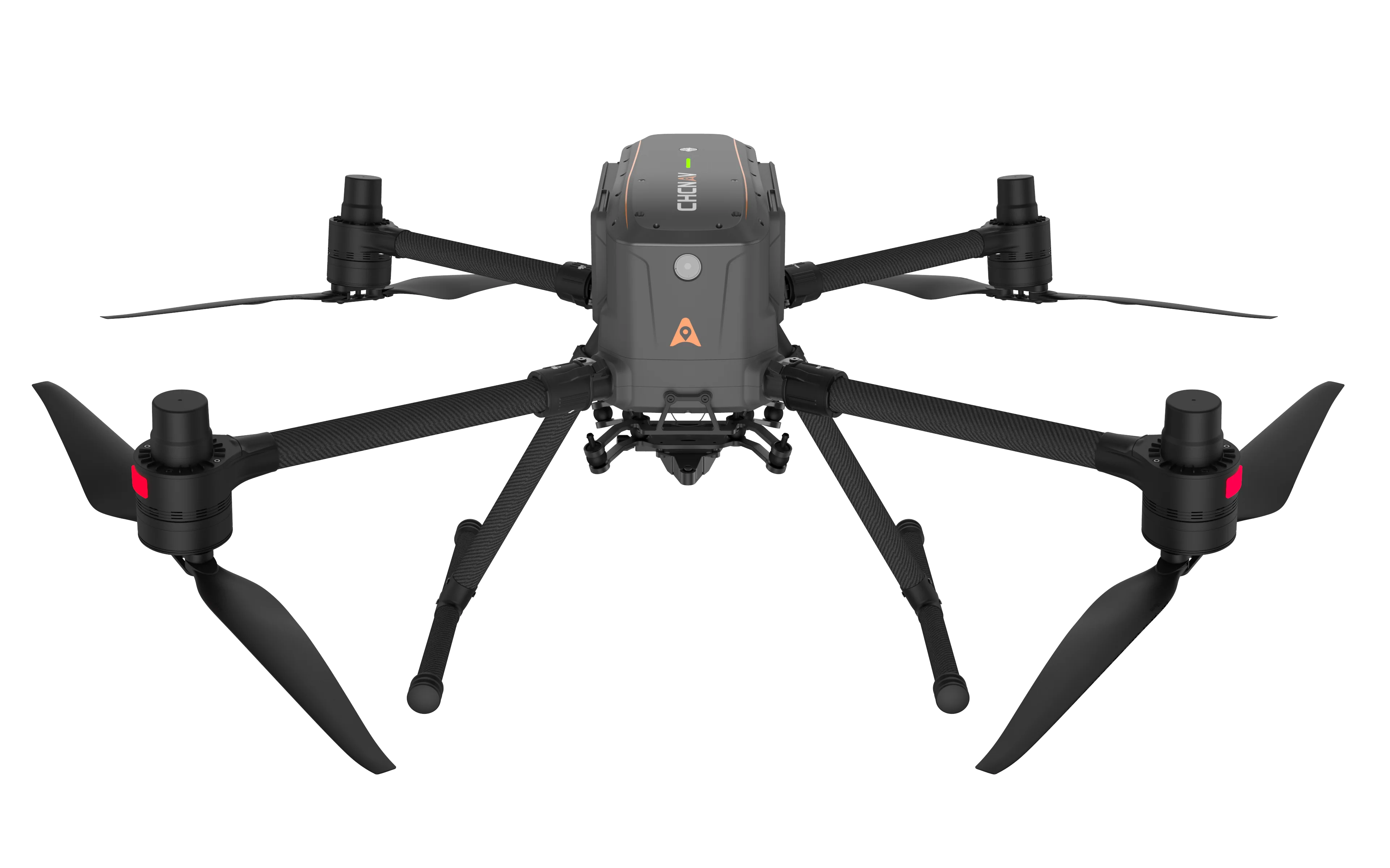

CHCNAV X500 Professional Multirotor Drone

Specifications:

Airframe & Payload

• Folded: 485 × 410 × 450 mm | Deployed: 770 × 804 × 450 mm

• Empty weight: ~4.4 kg (excluding batteries); ~8.9 kg with batteries

• Maximum takeoff weight: 13.9 kg

• Payload capacity: 5 kg

• Hover accuracy: ±1.5 m (GNSS) / ±0.1 m (RTK)

Flight Performance

• Maximum speed: 23 m/s

• Ascent speed: 8 m/s | Descent speed: 6 m/s

• Range: 58 min flight time; ~52 min with 2 kg payload; ~40 min with 4 kg payload

• Wind resistance: up to 12 m/s

• Operating temperature: –20 °C to +50 °C

Navigation & Sensors

• Dual GNSS (GPS, GLONASS, BeiDou, Galileo) with RTK precision (centimeter-level accuracy)

• Millimeter-wave radar for obstacle detection up to 80 m

• vSLAM for precision landing (under 10 cm deviation)

Battery & Controller

• B10 battery: 47 V, 10 Ah (~470 Wh), self-heating below 11 °C, auto shut-offs

• Remote controller: 10.1″ 1920×1200 touchscreen, ~1,000 nits brightness, ~5 h battery life, 20 km video range
