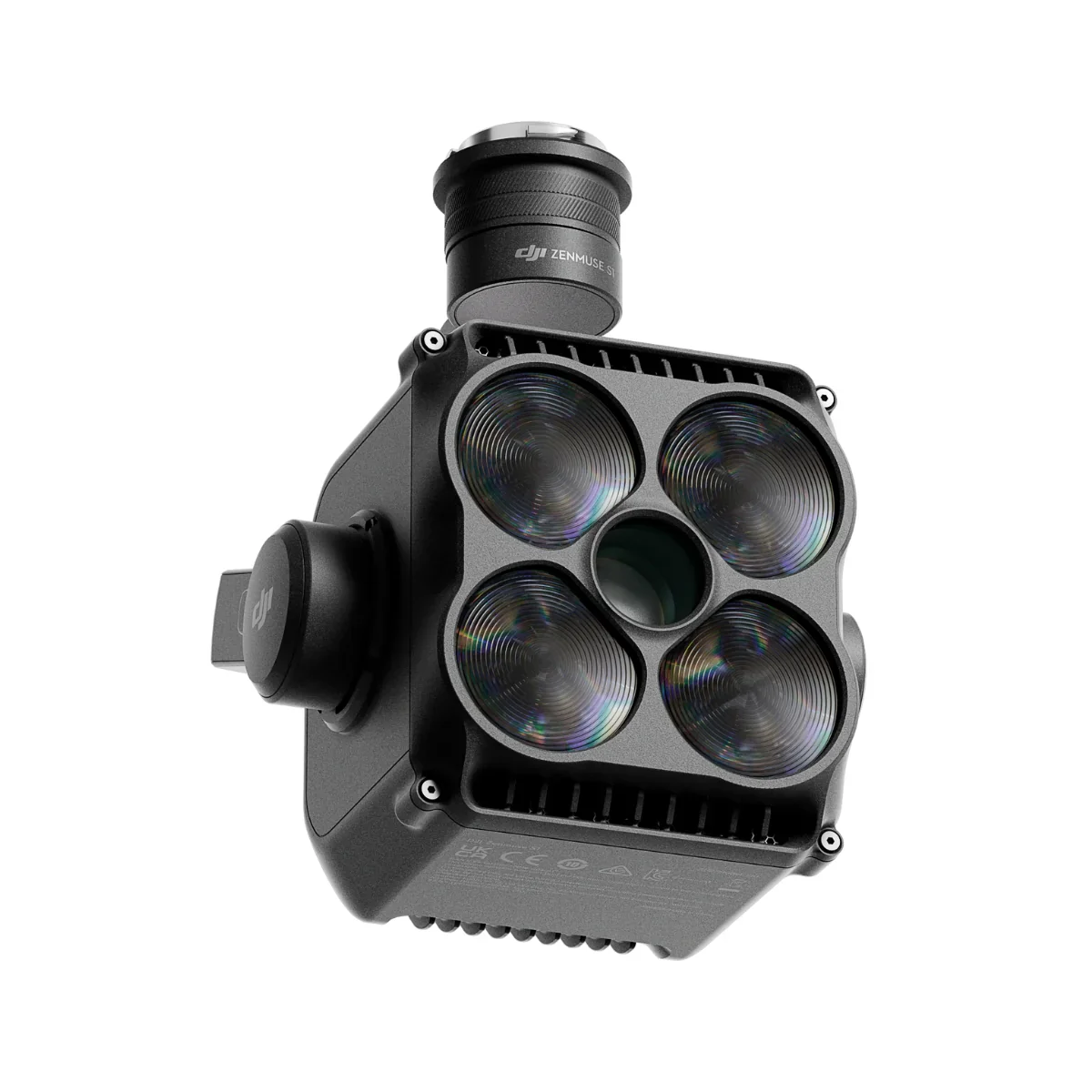

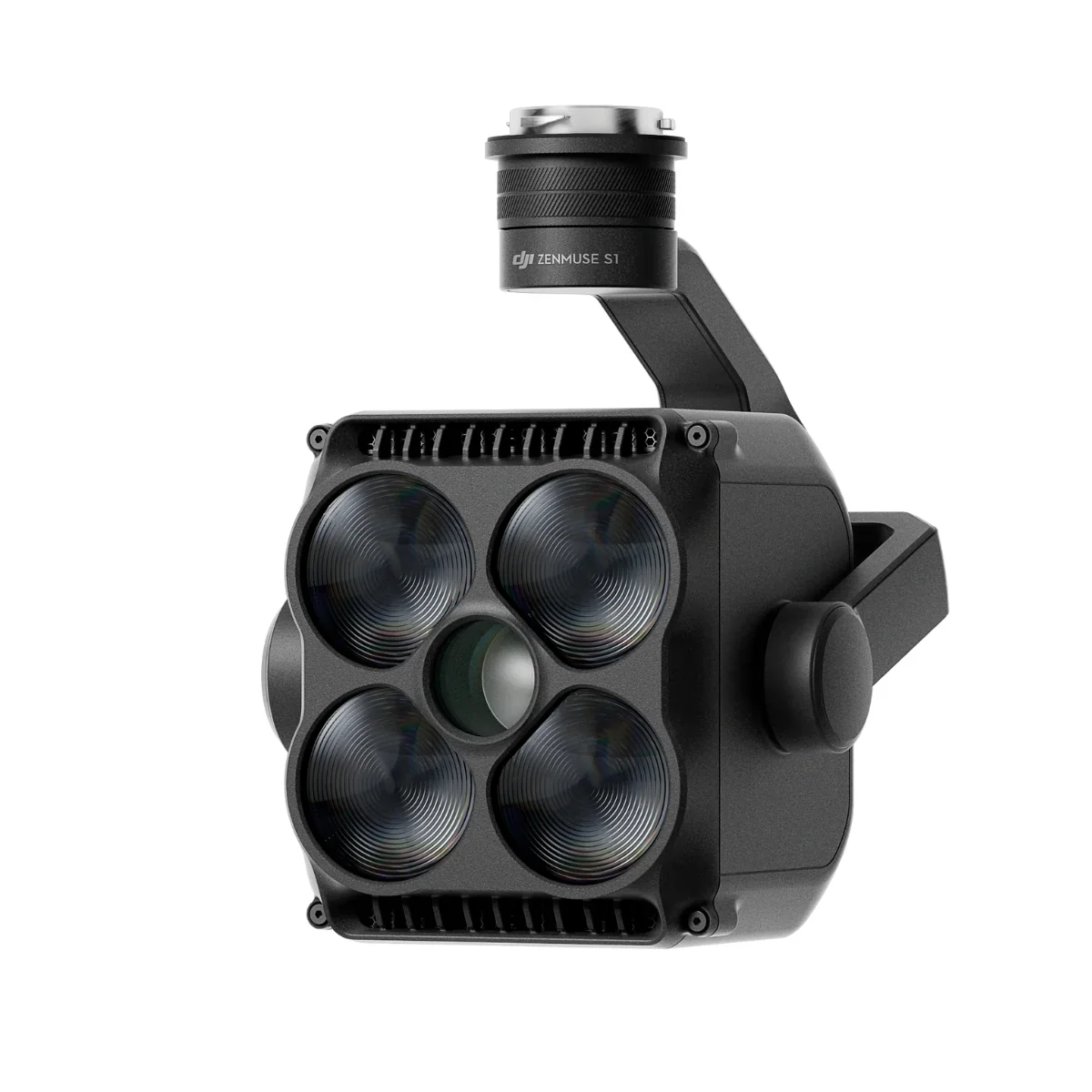

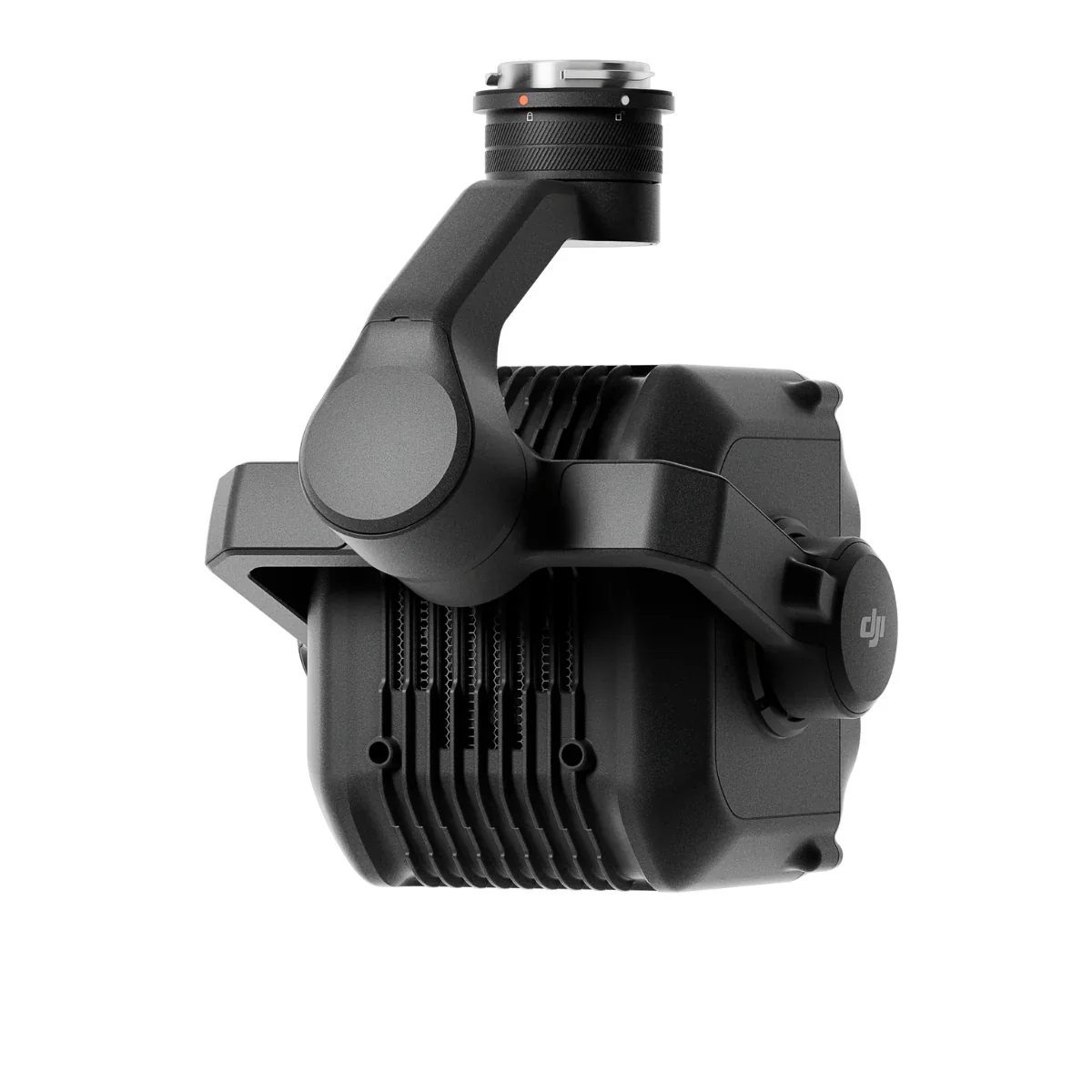

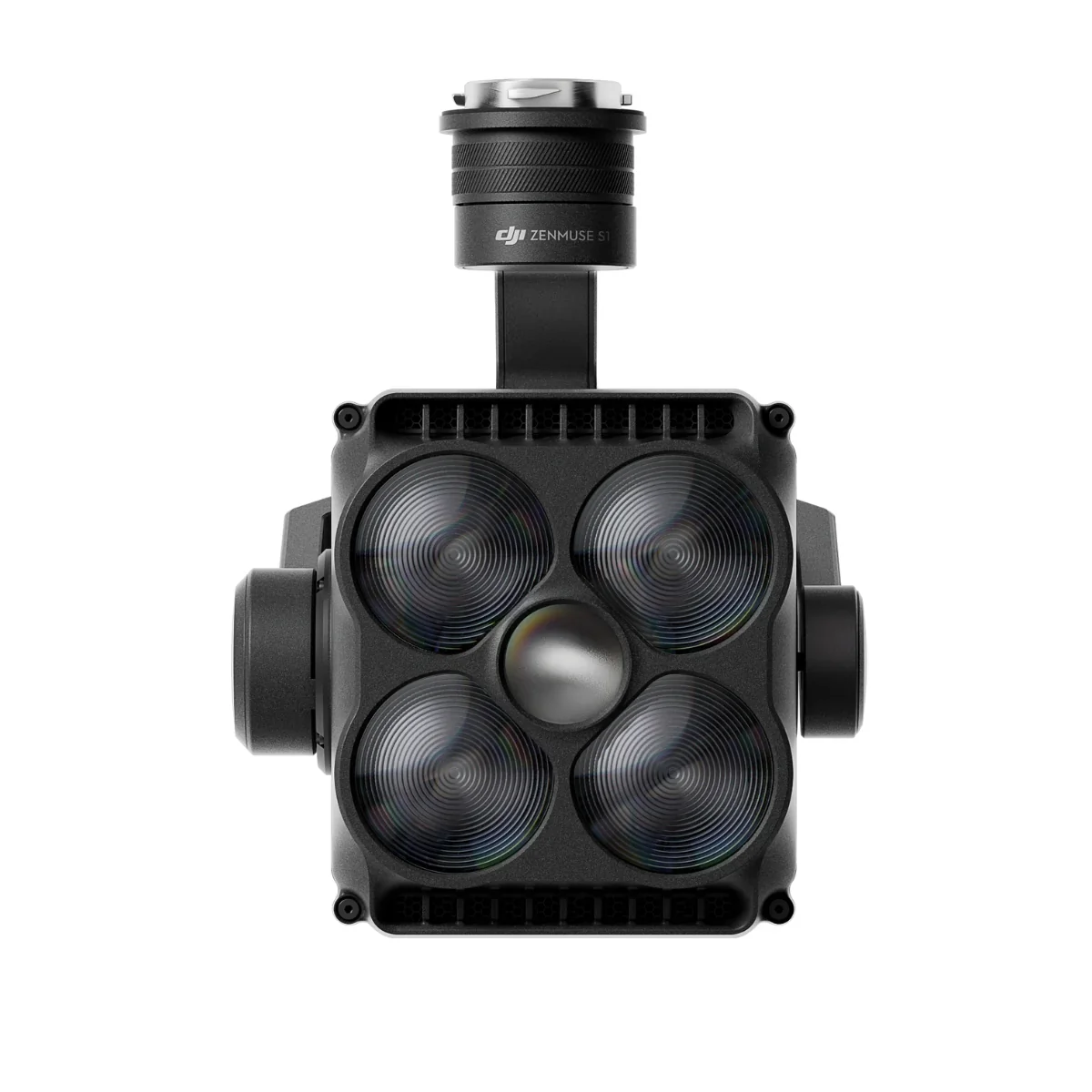

DJI Zenmuse S1 Spotlight for Matrice 350/Matrice 300

Specifications

• Weight: 760±10 g
• Dimensions: 125×152×171 mm (L×W×H)
• Rated Power: 68 W
• Supported Aircraft: Matrice 300 RTK (requires DJI RC Plus), Matrice 350 RTK
• Eye Safety Class: IEC 62471: Risk Group 1
• Shell Temperature: <50° C (122° F, plastic shell)
• Ingress Protection Rating: IP54
• Operating Temperature: -20° to 40° C (-4° to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Stabilization System: 3-axis (tilt, roll, pan)
• Angular Vibration Range: Hover: ±0.01°, Flight: ±0.02°
• Mounting: Detachable DJI SkyPort
• Mechanical Range: Tilt: -129° to +73°, Roll: ±55.8°, Pan: ±327°
• Controllable Range: Tilt: -120° to +60°, Pan: ±320°
• Operation Mode: Follow / Free / Re-center
• Maximum Central Illuminance: 35 lux @ 100 m (Both On mode)
• Low Beam Central Illuminance: 13 lux @ 100 m (Low Beam mode)
• High Beam Central Illuminance: 30 lux @ 100 m (High Beam mode)
• Effective Illumination Angle: 15±1° (Low Beam & Both On mode), 4±0.5° (High Beam mode)
• Typical Color Temperature: 6500 K typical (Low Beam mode), 7500 K typical (High Beam mode)
• Dimming Mode: Analog dimming
• Effective Illumination Distance: 500 m (Both On mode)
• Lighting Control: Turning light on/off, brightness adjustment
• Strobe Mode: 5 Hz strobe
• Lighting Mode: Low Beam mode, High Beam mode, Both On mode
• Remote Controller Buttons: Assignable for light on/off, brightness adjustment, or mode switching
• Gimbal Synchronization: Supports synchronized control with other gimbal-equipped payloads
• Eye Protection: Automatically limits brightness to 40% when not in flight
• Payload Protection: LED and LEP temperature protection, overcurrent protection, and power protection to prevent damage
